Total 5 products
-

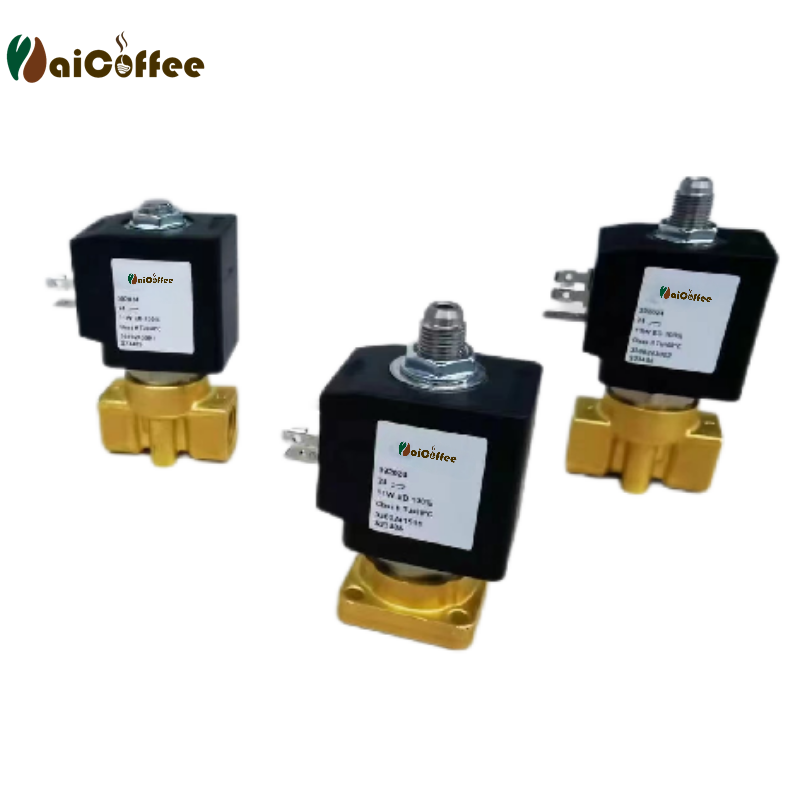

HCCMA0006 33X Series Large Copper Solenoid Valve
Mainly used in demanding coffee machine and beverage industry.
CE marking
High temperature resistant
Brass body
DC 24V , 110V 50Hz, 120V 60Hz, 230V 50Hz, 240V 60Hz
Maximum differential pressure 0-20 bar
Operating cycle 100 % ED
Orifice : 1.5mm, 2.5mm, 3.0mm
Medium : Water, Vapor @ 0-140°C
Ambient temperature -10°C to 60°C
Structure: Normally closed¥ 0.00Buy now
-

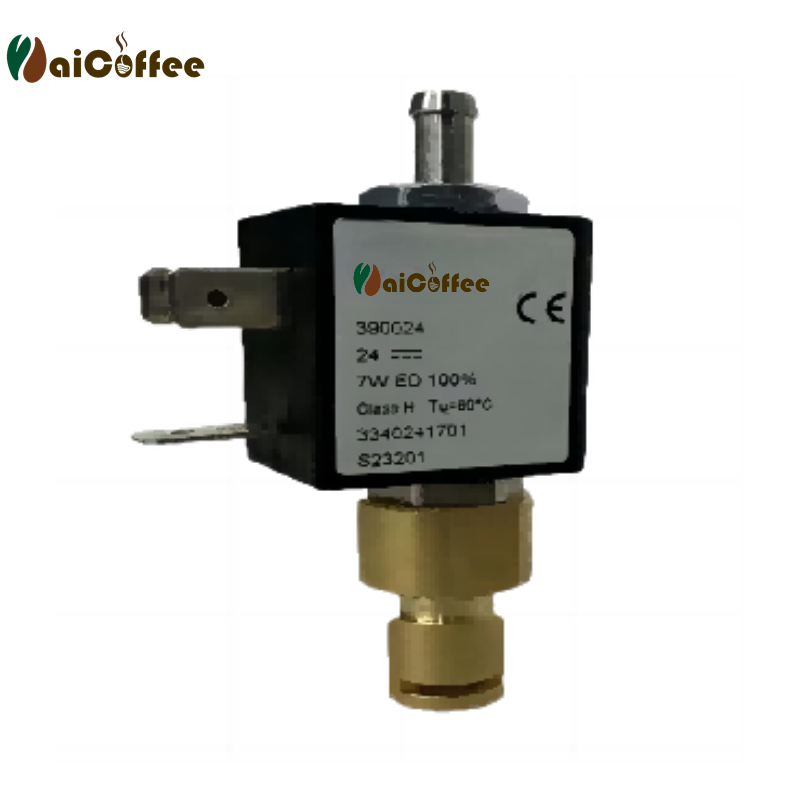

HCCMA0005 334 Series Small Copper Pressure Relief Valve
Mainly used for coffee machine system pressure relief
CE, National Standard Certificates
High temperature resistant
Brass body
DC 24V , 110V 50Hz, 120V 60Hz, 230V 50Hz, 240V 60Hz
334 Maximum differential pressure
15Bar 15Bar@1.2mm ,5 Bar@2.3mm
Orifice : 1.2mm, 2.3mm
Medium : Water, Vapor @ 0-140°C
Ambient temperature -10℃-60℃
Structure : Normally open¥ 0.00Buy now
-

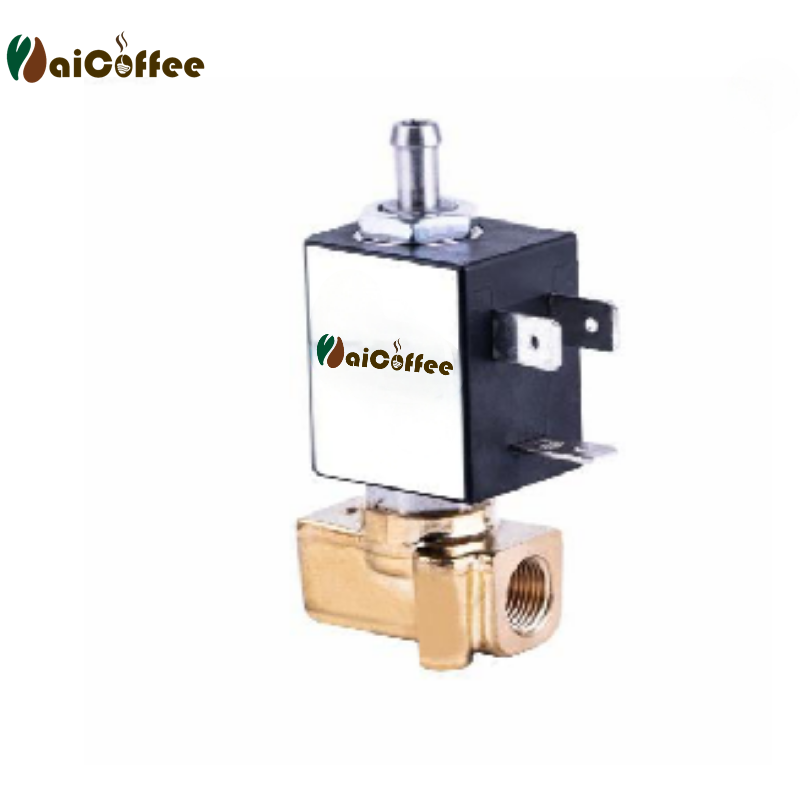

HCCMA0004 332 /333 Series Small Copper Solenoid Valves
Mainly used in medical, central air conditioning, boiler equipment, water treatment equipment, etc.
VDE, CE approved
High temperature resistant
Brass body
DC 24V , 110V 50Hz, 120V 60Hz, 230V 50Hz, 240V 60Hz
332 Maximum Differential Pressure 15Bar
333 Maximum Differential Pressure 15Bar@1.2mm ,5 Bar@2.3mm
Orifice : 1.2mm, 2.3mm
Medium : Water, Vapor @ 0-140°C
Ambient temperature -10℃-60℃
Structure: Normally closed¥ 0.00Buy now
-

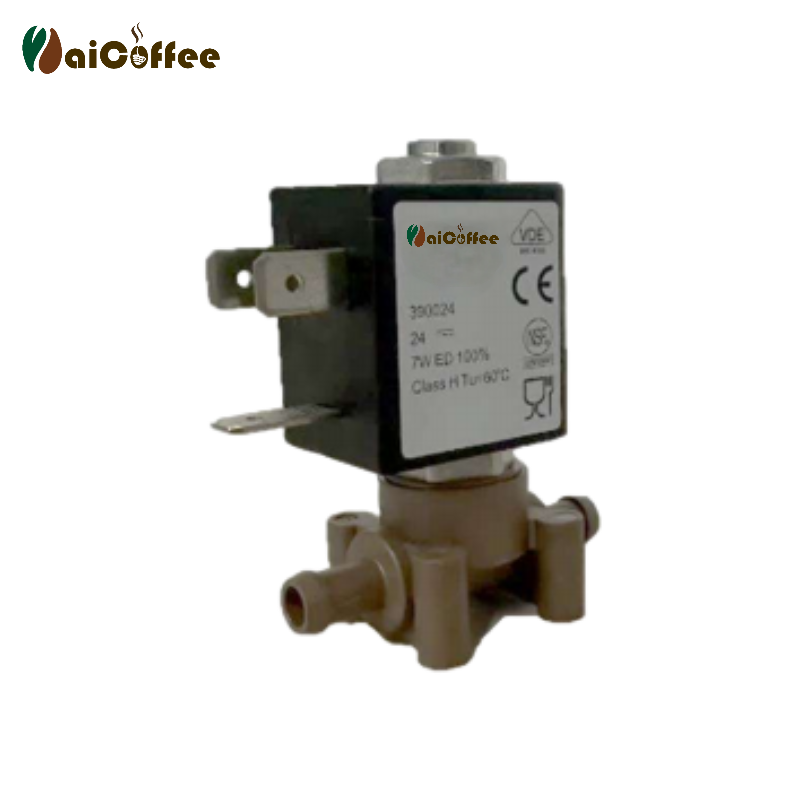

HCCMA0003 330 Hose Connection Valve
Mainly used in commercial coffee machines and food industry with high standards.
Two way and three way options
VDE, CE, NSE, CQC certified
PPS Main body DC 24V, 110V 50Hz, 120V 60Hz, 230V 50Hz, 240V 60Hz
330 Maximum Differential Pressure 15Bar
Orifice : 1.2mm, 2.3mm
Medium : Water, Vapor @ 0-140°C,.
Ambient temperature -10℃ -60℃
Structure : Normally closed¥ 0.00Buy now
-

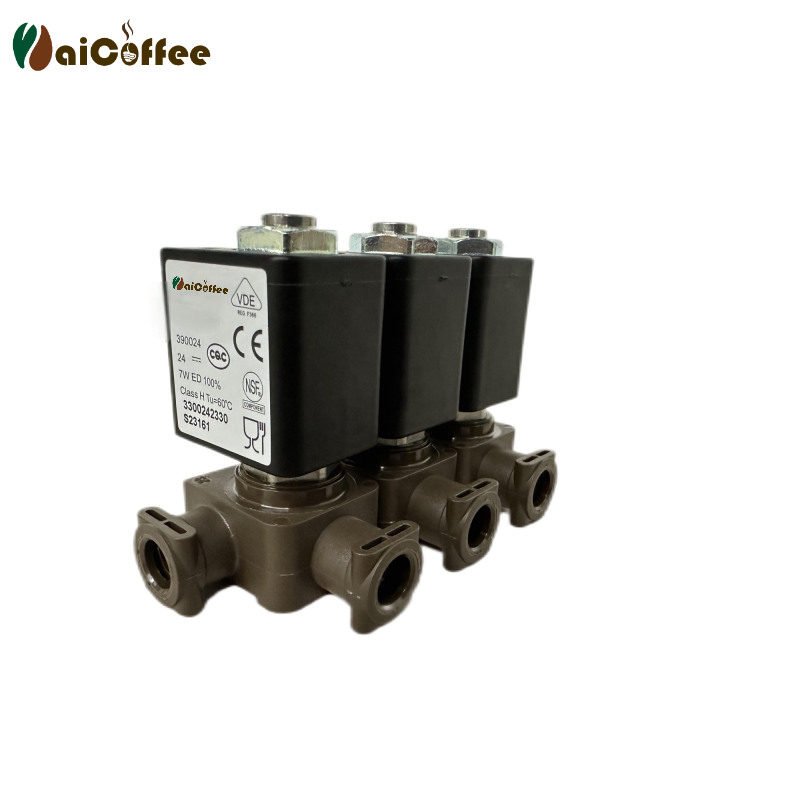

HCCMA0002 330 Series Solenoid Valve for Discharge Valves
Mainly used in high standard commercial coffee machines and in the food industry.
The number of valves can be selected according to customer requirements.
VDE, CE, NSE, CQC certified
PPS Main body
DC 24V , 110V 50Hz, 120V 60Hz, 230V 50Hz, 240V 60Hz
330 Maximum Differential Pressure 15Bar
331 Maximum Differential Pressure 15Bar@1.2mm ,5 Bar@2.3mm
Orifice : 1.2mm, 2.3mm
Medium : Water, Vapor @ 0-140°C
Ambient temperature -10℃-60℃
Structure : Normally closed¥ 0.00Buy now
